Description
- Custom depth available
- Up to 10 combination of width and height
- Handle option: T3
- Suitable for for small-sized instruments and power supply equipment
- >>Download detailed product brochure

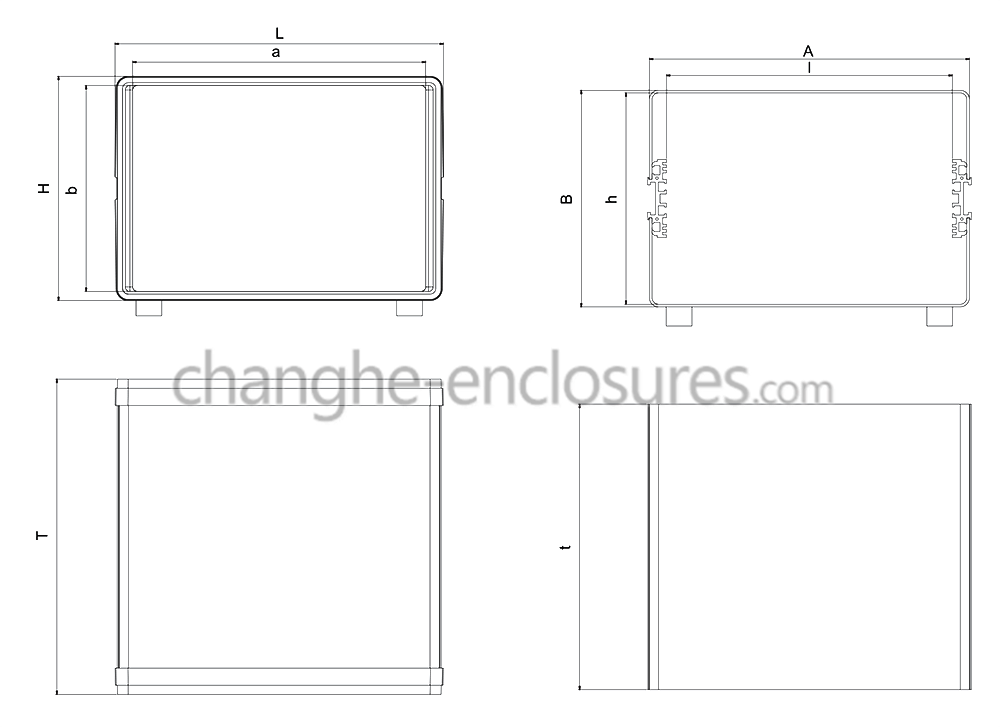

03A Dimension chart
- More details please see product brochure
Standard configuration
1. Front/rear frame
2. Cover

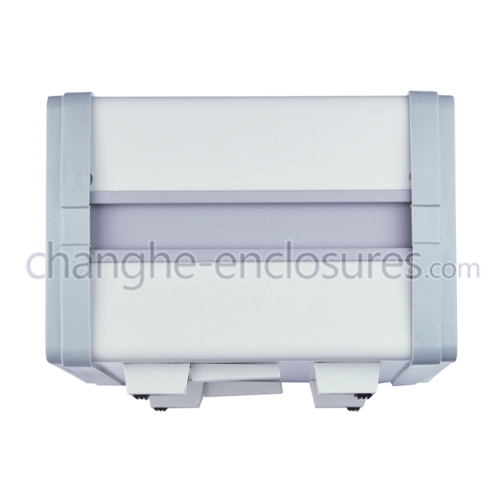

3. Side plate
4. Bottom foot
5. Panel
Handle options
T3 Handle
Color chart
| Case | Front/rear frame | Side plate | cover |
| 1 | Mid-gray | Mid-gray | Light gray |
| 2 | Green | Green | Light gray |
| 3 | Blue | Blue | Light gray |
| 4 | Pebble gray | Pebble gray | Light gray |
| 5 | Black | Black | Blue gray |
| 6 | Black | Black | Dark gray |

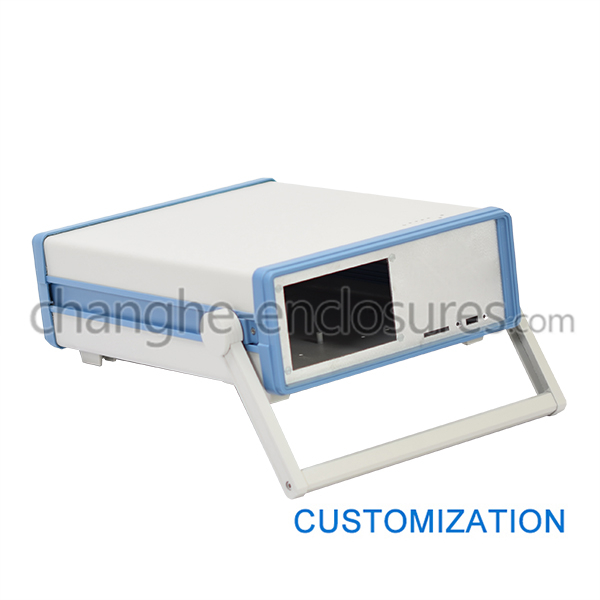

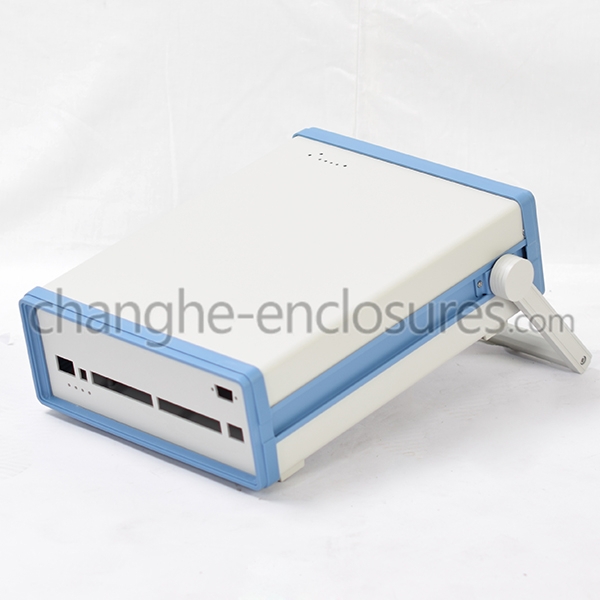

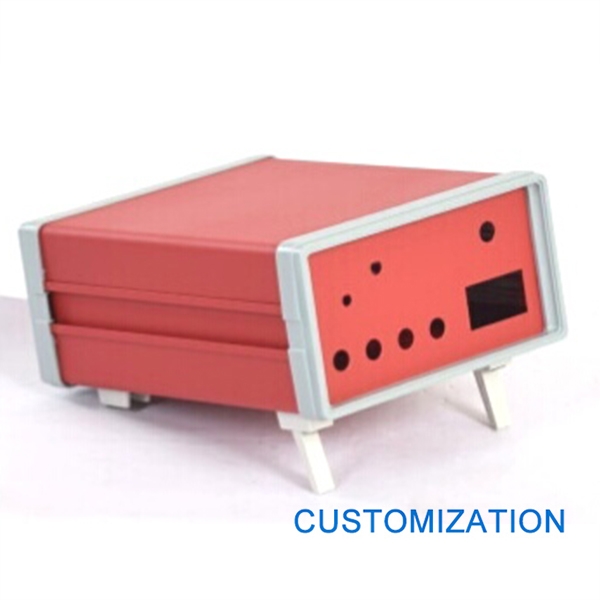

Custom Tooling
We offer you the following customization services for these products:
Cut-outs in the front and rear panel
Secondary tooling for top and bottom cover
Special vent holes on side plates
Strengthen enclosure by mounting additional extrusion
How to order
1. Inform us the model no. of the desired enclosure
2. Inform us the desired overall height(H),overall width(W) and depth(T)
3. Optional accessories need to be orderedseparately
4. Specify us your desired color combination
5. If custom tooling is required, detailed drawings need to be provided to us
