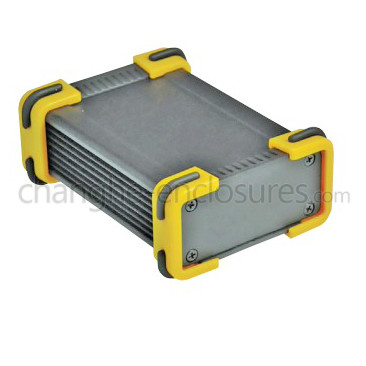

Description
- External size (W x H) :70 x 37 mm
- Internal size (W x H) : 53x 22.4 mm
- Custom length
- Made of extruded aluminum alloy
- Good heat dissipation andEMI shielding
- Optional surface treatment: clear anodizing, sand blasting anodizing, or spray painting
- Slots in the extrusion for installing PCB and components
- Corner guards are designed to be both aesthetically pleasing, and impact resistant.
- Standard enclosures feature no air vent holes. If vent holes are required, detailed drawings need to be provided
Standard components
| Parts | No. | Material |
| Cover / base | 2 | Extruded aluminum alloy |
| Front /rear panels | 2 | Aluminum plate |
| Screws | 8 | Stainless steel |
| Frames | 4 | ABS |
| Sealing ring | 2 | Silicon rubber |
