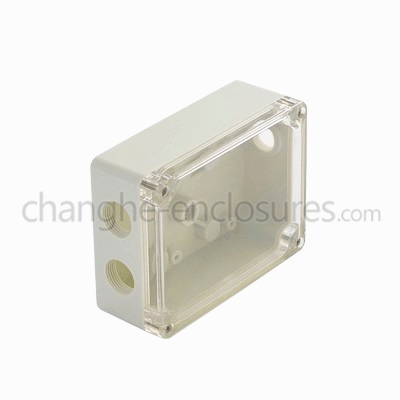

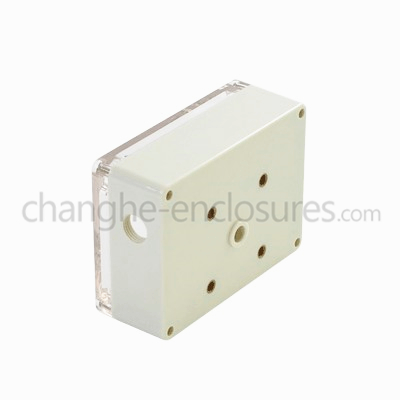

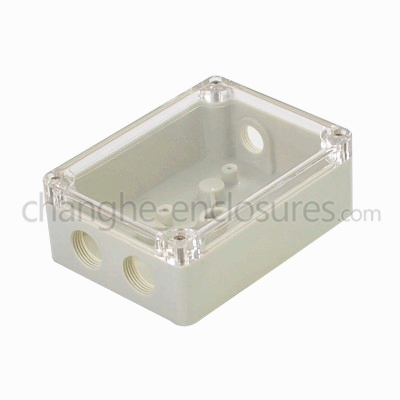

Description
- External size:160mm x 120mm x 63mm (LxWxH)
- The interior contains fastening domes
- Optional wall-mounting kits
Technical Data
| Ingress protection | IP65 IEC60529:2001 |
| Impact protection | IK07 IEC62262:2002 |
| Temperature range (short term) | -40℃~ 80℃ IEC60068:1997 |
| Temperature range (long term) | -20℃~ 60℃ IEC60068:1997 |
| Electrical insulation | Total insulation |
| Flammability rating | PC:UL94_5VA ABS:UL94HB |
| Non-toxicity | Halogen Free |
| RoHS | RoHS compliance |
Similar products
| Product no. | External sizes (mm) | Internal sizes (mm) | Mounting-plate sizes (mm) | Description |
| 10-1-1 | 115x90x70 | 109x84x60 | 77×68 | Material: ABS, opaque cover |
| 10-2 | 115x90x55 | 109x84x45 | 77×68 | Material: ABS, transparent clear cover |
| 10-30 | 115x90x55 | 109x84x47 | 77×68 | Material: ABS, opaque cover, flanged enclosure |
| 10-30-1 | 115x90x55 | 109x84x47 | 77×68 | Material: ABS, opaque cover, flanged enclosure,membrane area |
| 10-40 | 115x90x55 | 109x84x45 | 77×68 | Material: ABS, opaque cover,membrane area |

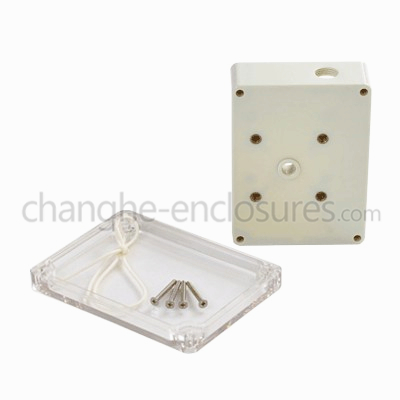

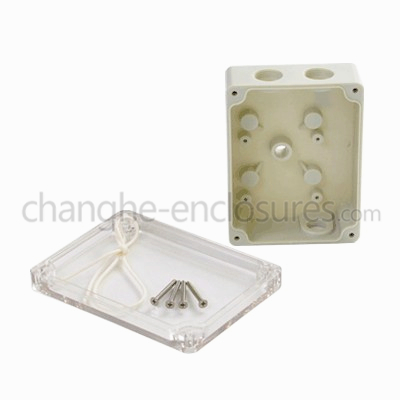

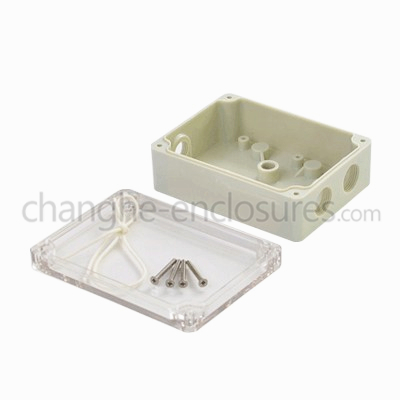

Standard components
| Parts | No. | Material | Standard Color |
| Cover | 1 | PC | transparent |
| Base | 1 | ABS | off-white |
| Sealing ring | 1 | Silicon rubber | off-white |
| Screws | 4 | Stainless steel | n/a |
